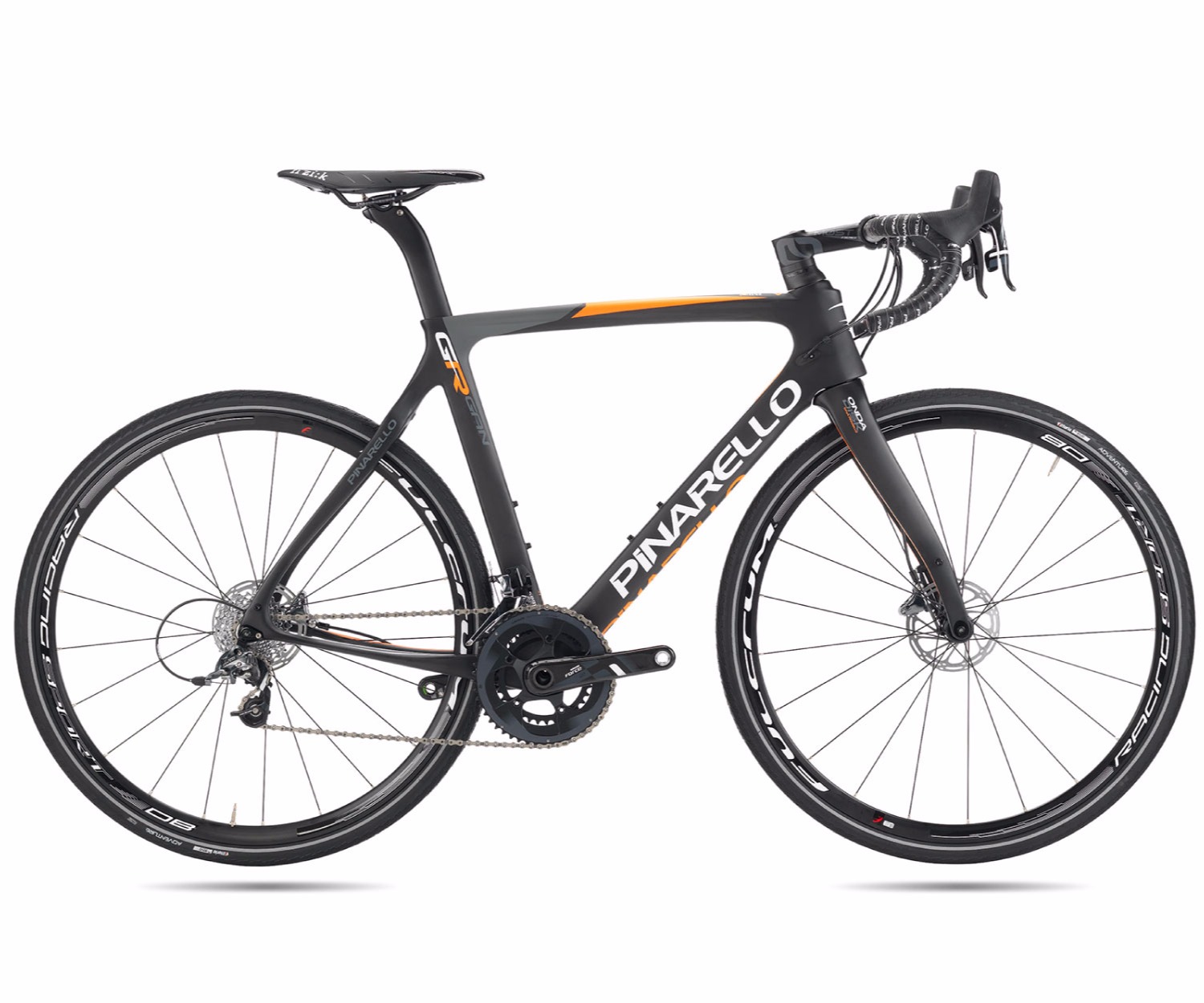

Gan GR Disk
Defined geometries allow for great comfort to the rider, especially on bumpy roads and long distances. On the rear, engineers used the "Flexstays" technology, with a flat and wide section to have a high absorption of vibrations in the vertical plane and torsional stiffness.
Considering the terms of use, which may include slippery and muddy roads, the wheel clearance has been widened to fit tires up to 38 mm (or 32 mm tires with mudguards). The disk brakes uses Shimano ThruAxle pins (12 x 100 mm on the front and 12 x 142 mm on the back), to obtain the optimum braking power and traction on any terrain.
Aerodynamics was also considered, since the main triangle uses similar airfoils of Dogma F8.

Gan Disk
GAN Disk derives directly from the Dogma F8 Disk, but with several specific solutions make it a frame less extreme, while maintaining intact the style and feeling of Pinarello bikes.
Braking system has been upgraded to hydraulic disk brakes (Shimano Flat Mount standard), in order to increase the braking power, and with ThruAxle, for stiffness and perfect wheel's alignment.
GAN Disk is a good entry level which maintains the peculiarities of DOGMA F8: asymmetry, even if less prominent, and a new high-strength material, although less rigid and performing.

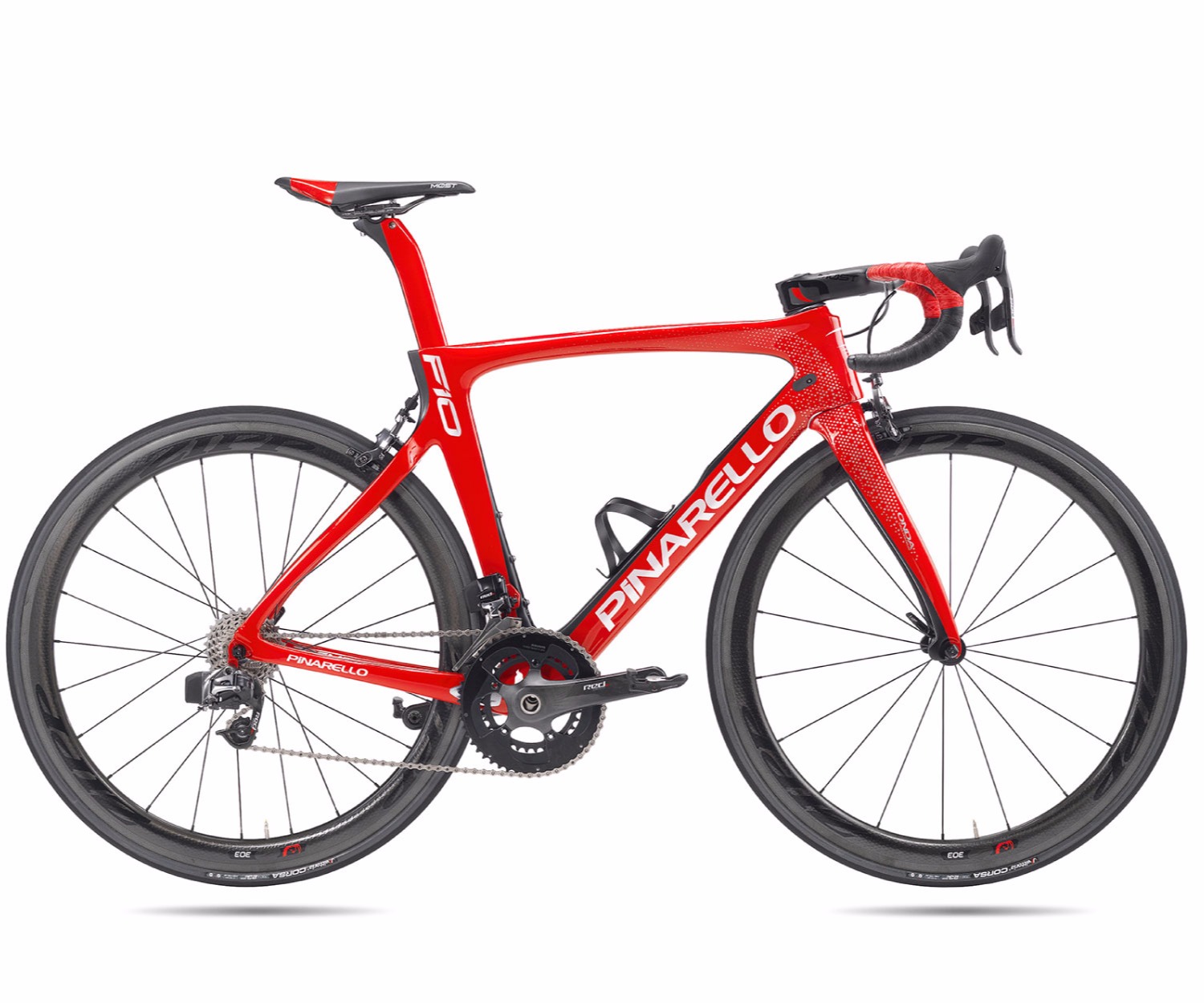

F10
Dogma F10 has also inherited much from the BOLIDE, currently the fastest bike in the world, the current Hour Record holder with Sir Bradley Wiggins, time trial World Champion with Kiryenka and winner of Tour de France 2016 with Chris Froome.
It retains the super-efficient Flatback™ profiles from the Dogma F8, but inherits a new design of the down tube from the BOLIDE TT which shields the water bottles from the airflow, while further increasing the lateral stiffness.

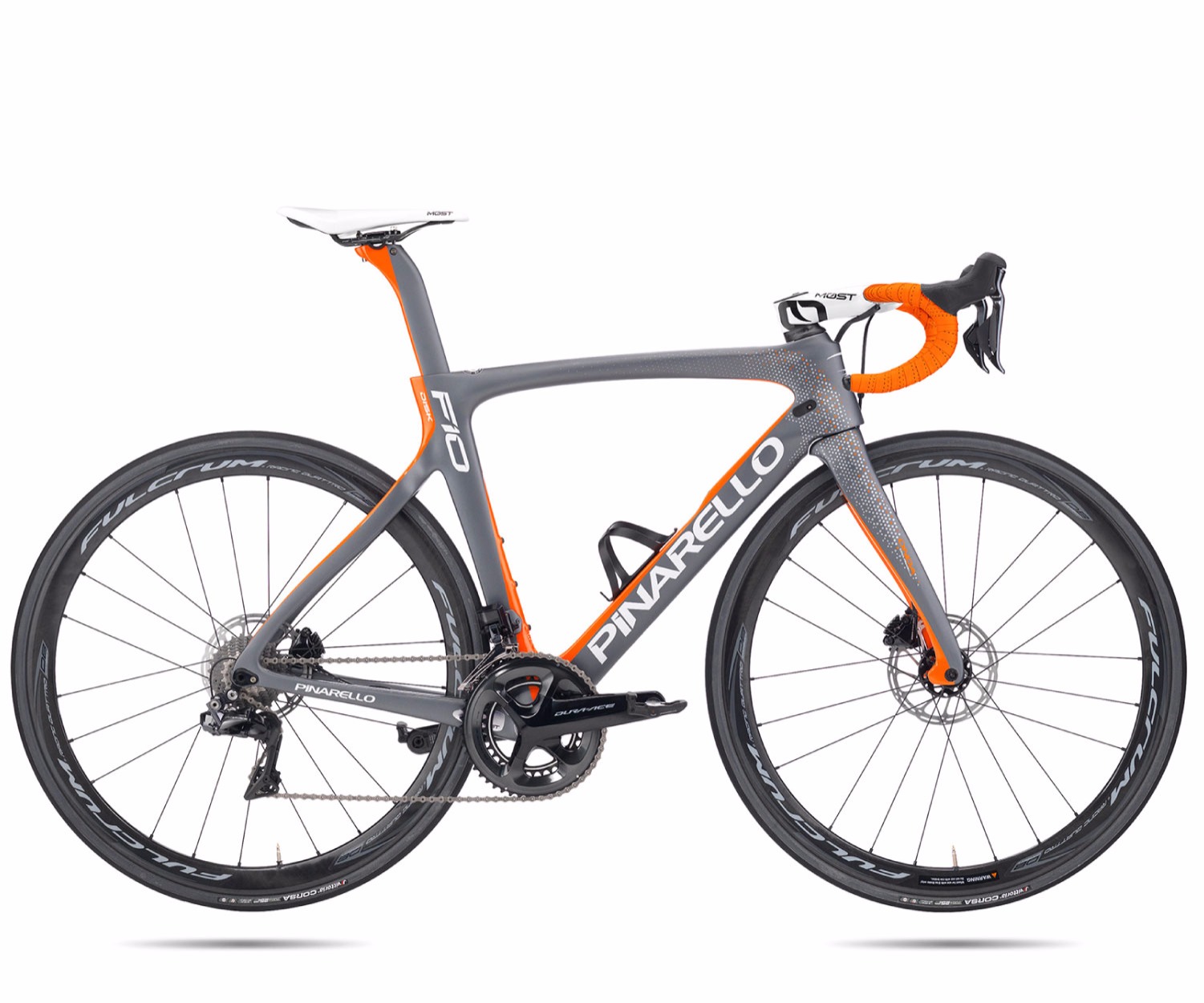

F10 Disk
Carbon Torayca T1100 1K Dream Carbon with Nanoalloy Technology . Asymmetric Frame . Fork ONDA F10 with ForkFlap™ . Think2 System with E-Link™ . ICR™ Internal Cable Routing . Drop in Bearing System 1” 1/8 - 1”1/2 . Italian thread BB . Seatclamp TwinForce . FlatBack Profile . RAD SYSTEM Disk brake . Front Axle 100x12mm Shimano® . Rear Axle 142x12mm Shimano® . Disk Flat Mount max 160mm.
-
2018 Pinarello Dogma F10 Disk Frameset
$5,999.00 -
2017 Pinarello Gan GR-S Disk
$5,250.00 -
2017 Pinarello Dogma F8 Frameset
$5,750.00 -
2017 Pinarello Dogma K8-S Frameset
$6,250.00 -
2017 Pinarello Dogma K8 Frameset
$6,250.00 -
2017 Pinarello Gan RS
$5,000.00 -
2018 Pinarello Angliru
$2,200.00 -
2018 Pinarello Gan S Easy Fit
$4,100.00 -
2018 Pinarello Gan RS
$5,000.00 -
2017 Pinarello Gan S
$4,000.00
